GDR Agricultural Feeder & Elevator Chain P 41.30

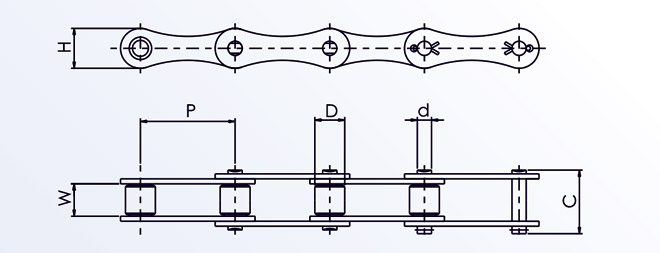

| KDV Chain No. | Pitch (P) | Roller Diameter (D) (Max.) | Width Between Inner Plates (W) (Min.) | Plate Height (H) (Max.) | Pin Diameter (d) (Max.) | Clearance (c) (Max.) | Average Weight (kg/m) | Tensile Strength kg (Min.) |
|---|---|---|---|---|---|---|---|---|
| P 41.30 | 41.30 | 16.00 | 22.23 | 20.70 | 8.27 | 44.00 | 2.00 | 5500 |

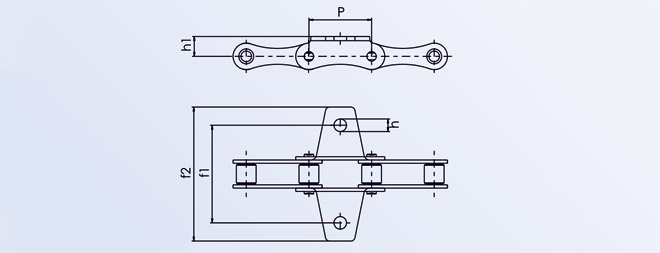

| KDV Chain No. | Pitch (P) | Transverse Pitch for Bolts (f1) | Bolt Hole Diameter (h) | Width Over Attachment (f2) | Platform Height (h1) |
|---|---|---|---|---|---|

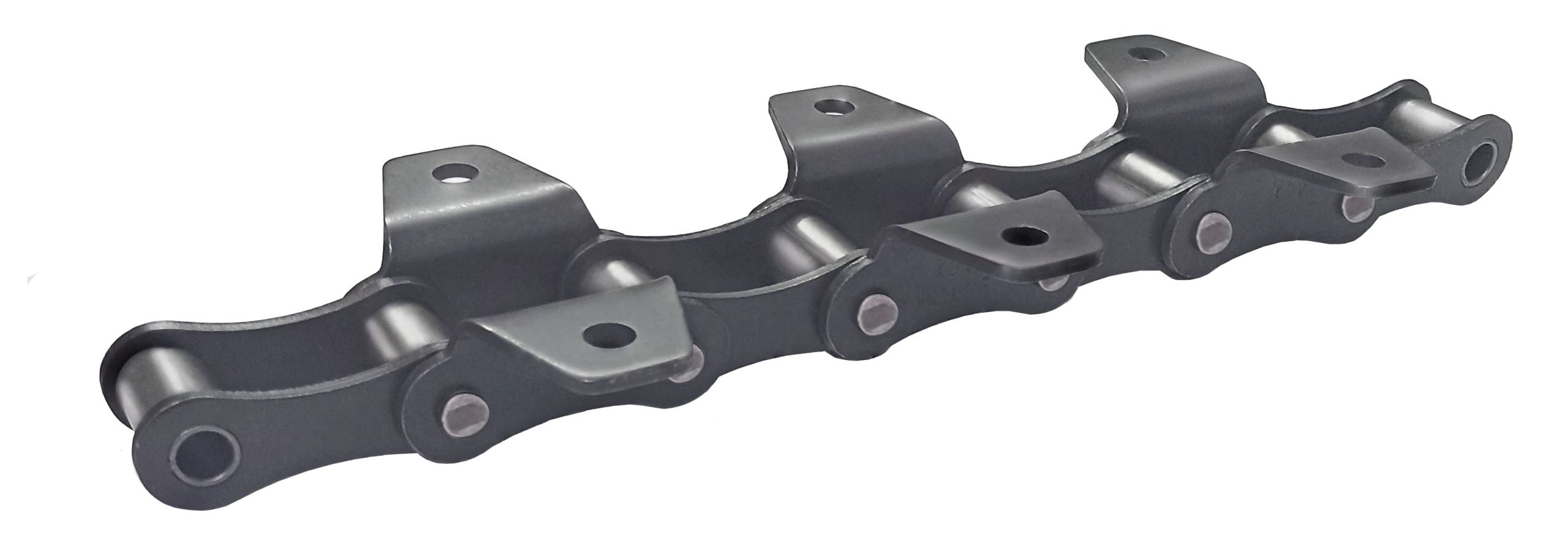

| P 41.30 K | 41.30 | 70.00 | 8.50 | 96.00 | 17.00 |

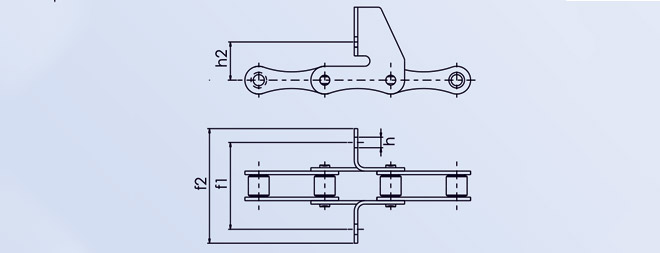

| KDV Chain No. | Pitch (P) | Transverse Pitch for Bolts (f1) | Bolt Hole Diameter (h) | Width Over Attachment (f2) | Height of bolt hole center (h2) |
|---|---|---|---|---|---|

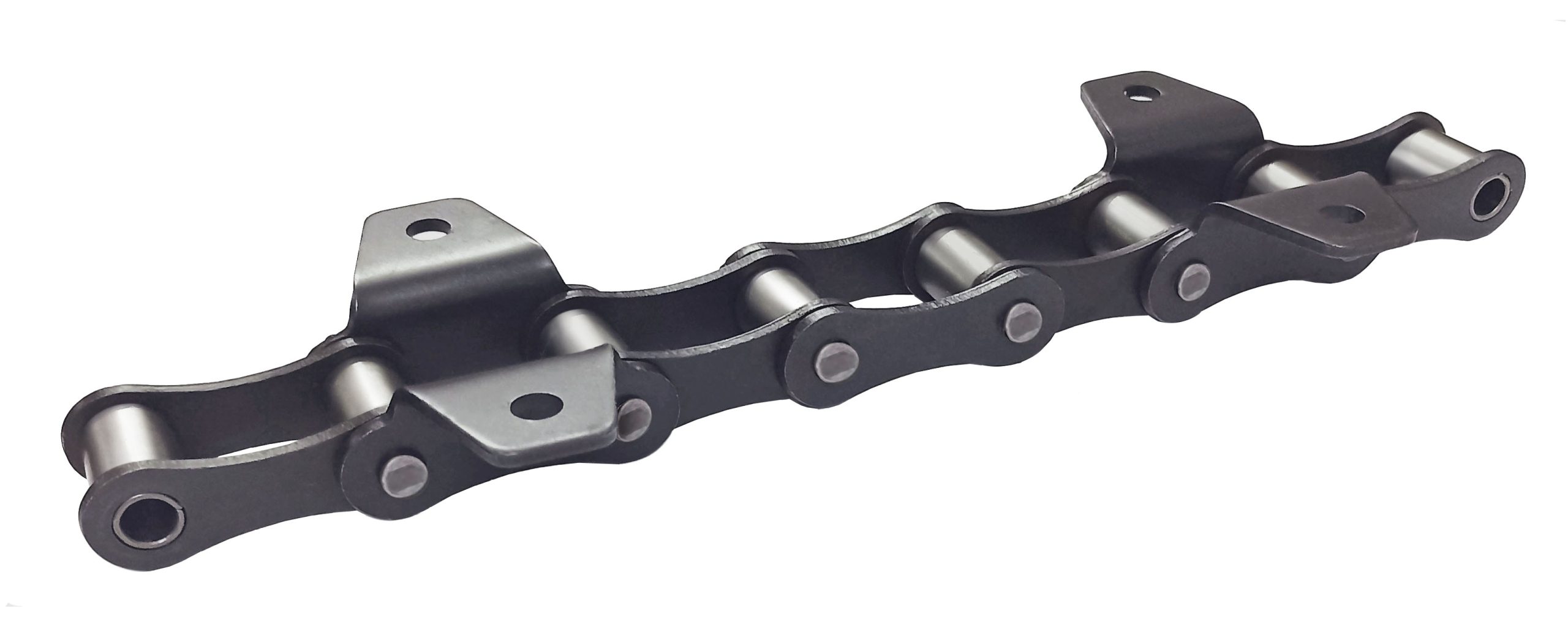

| P 41.30 F | 41.30 | 60.00 | 6.50 | 83.50 | 25.00 |
