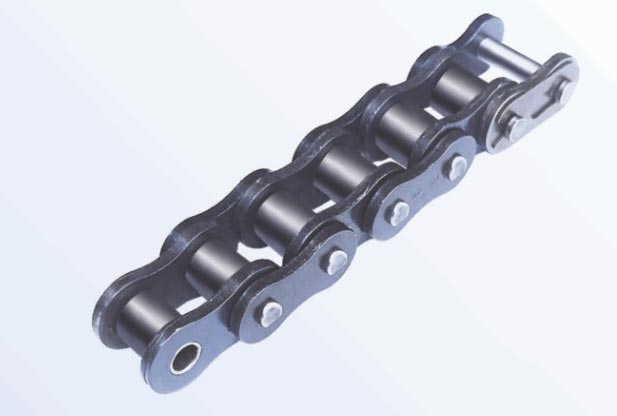

Baler Agricultural Chains

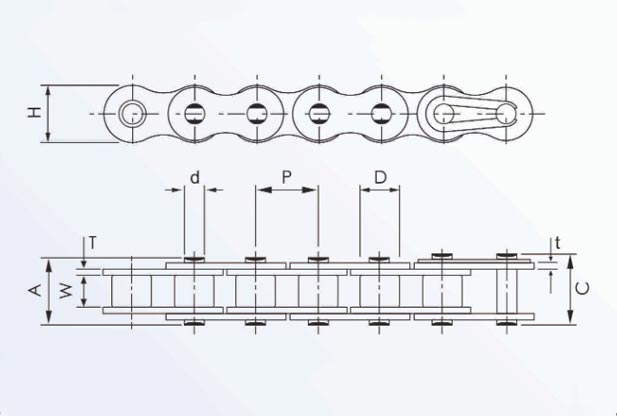

| ROLKING Chain No. Baler | Type of Strands | Intl. Ref. No. | Pitch (P) | Roller Dia Max (D) | Width Between Inner Plates Min (W) | Plate Height Max (H) | Plate Thickness Max (t/T) | Pin Dia Max (d) | Pin Length Max (A) | Clearance Max (C) | Average Weight (Min) (Kg/m) | Tensile Strength (Min) (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RK-100-1-192LAH | Simplex | 50H 10AH |
15.875 | 10.16 | 9.40 | 15.09 | 2.42 | 5.08 | 21.80 | 25.90 | 1.25 | 3,000 |
| RK-120-1-160LAH | Simplex | 60H 12AH |
19.05 | 11.91 | 12.57 | 18.08 | 3.25 | 5.94 | 26.90 | 31.50 | 1.87 | 4,200 |
WE ARE DEDICATED TO PROVIDING THE BEST SERVICE AT THE LOWEST POSSIBLE COST
Why Us
Provides significant chains for a hundred of applications.
Strict quality standards to maintain our product quality.
Excellent wear resistance & fatigue resistance with a long reliable working life to the products.
All our products are manufactured using premium quality raw materials so that only the best in all terms reaches our clients.
