Maize Agricultural Chains

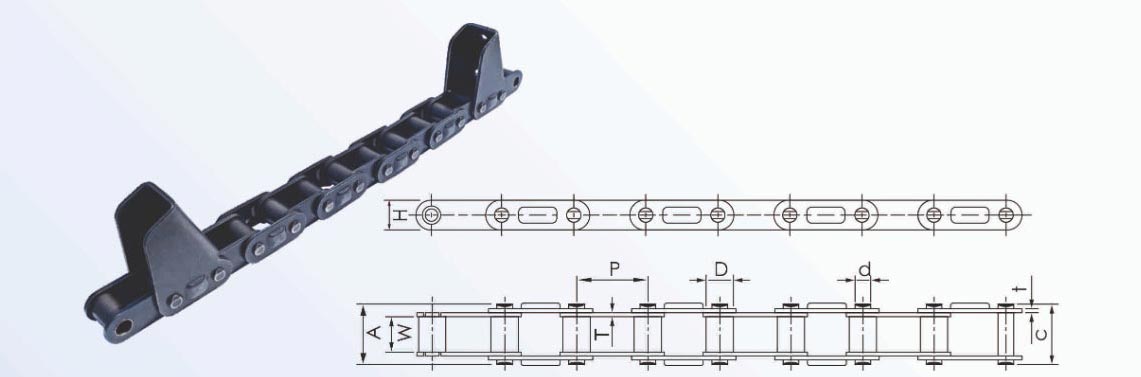

| KDV Chain No. Maize | Pitch (P) | Roller Diameter (D) (Max.) | Width Between Inner Plates (W) (Min.) | Plate Height (H) (Max.) | Plate Thickness (T) (Max.) | Plate Thickness (t) (Max.) | Pin Diameter (d) (Max.) | Pin Length (A) (Max.) | Clearance (c) (Max.) | Average Weight (kg/m) | Tensile Strength kg (Min.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P 30.00 M | 30.00 | 15.88 | 19.05 | 20.70 | 3.00 | 3.00 | 8.27 | 36.00 | 36.00 | 2.45 | 5400 |

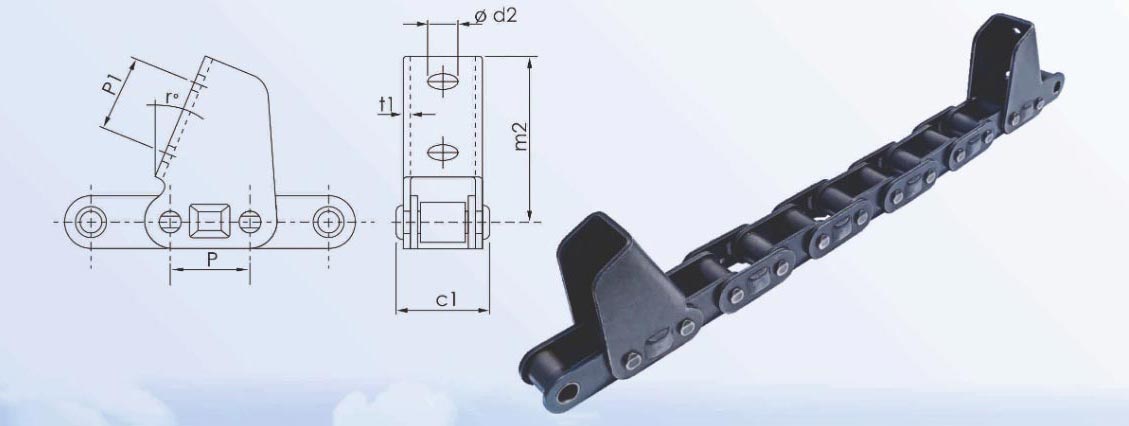

| KDV Chain No. | Pitch (P) | Roller Diameter | Height over Att. (m2) | Width over Att. (c1) | Angle Over Att. (r°) | Hole Pitch Att. (P1) | Plate Thickness Att. (t1) | Hole Dia. Att. (d2) |
|---|---|---|---|---|---|---|---|---|
| P 30.00 M | 30.00 | 15.88 | 63.00 | 36.00 | 23.00 | 30.00 | 2.90 | 6.50 |
WE ARE DEDICATED TO PROVIDING THE BEST SERVICE AT THE LOWEST POSSIBLE COST
Why Us
Provides significant chains for a hundred of applications.
Strict quality standards to maintain our product quality.
Excellent wear resistance & fatigue resistance with a long reliable working life to the products.
All our products are manufactured using premium quality raw materials so that only the best in all terms reaches our clients.
